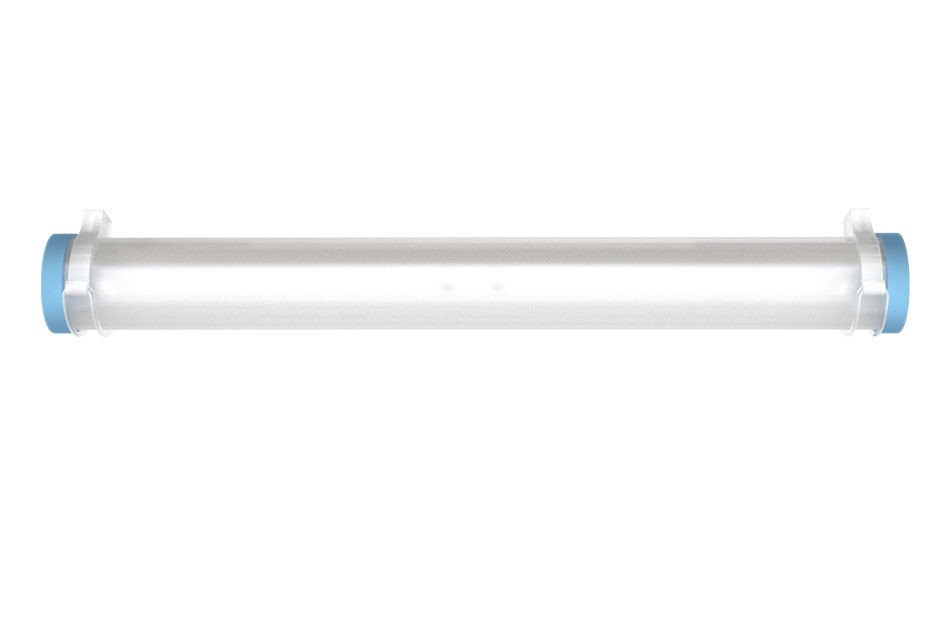

Tutto

LEDs

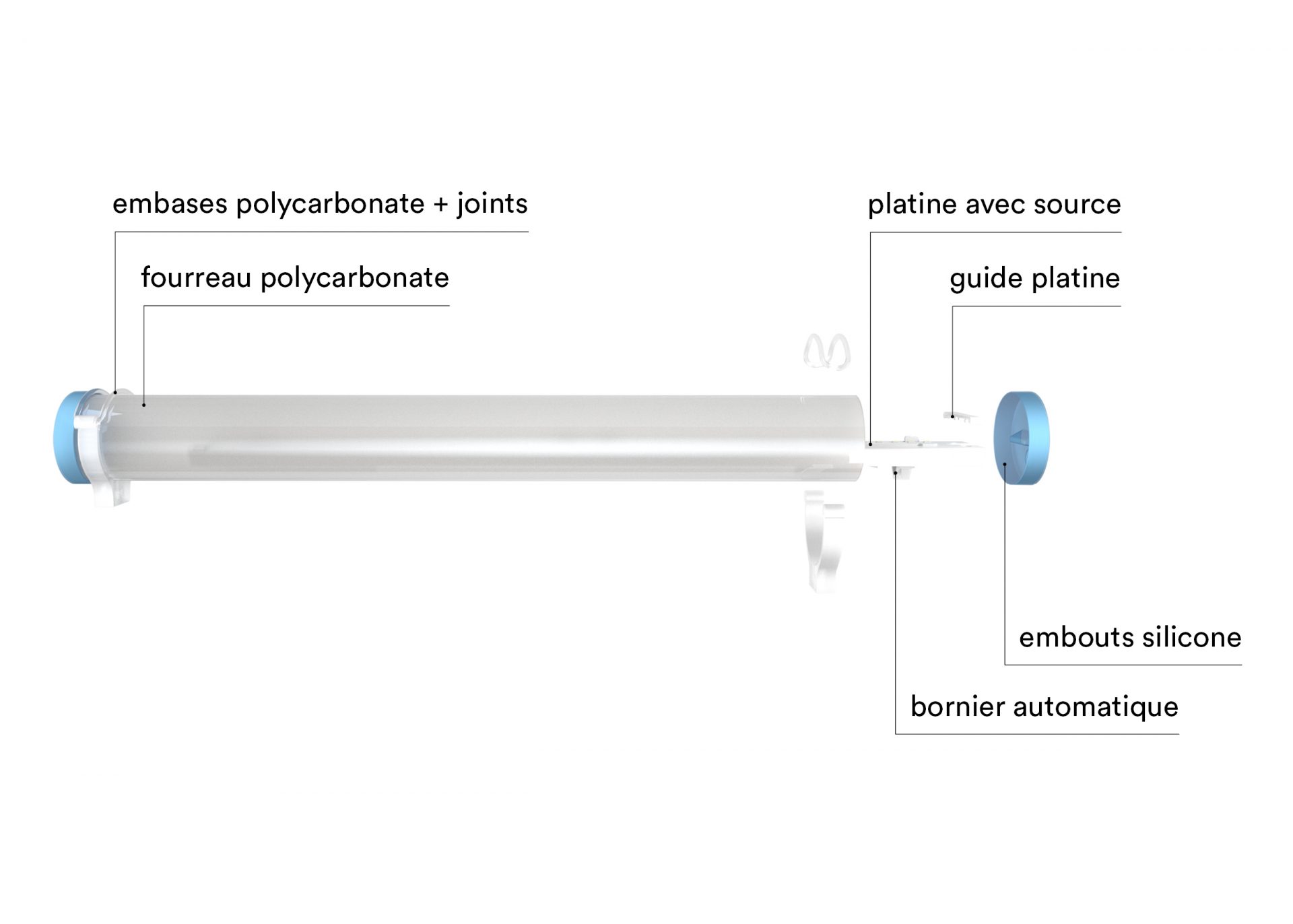

materials & finishes :
– 70 mm diameter anti-UV opal polycarbonate body with translucent silicone end caps and integrated cable gland
– plate in sheet steel painted white incorporating 3000 or 4000 K LED strips.
connection :
– by automatic terminal block with cable clamp
fixation :
– on polycarbonate bases held by silicone seals and clipped onto the body for a variable center distance
color rendering index :
– CRI>> 80
Lifetime :
– 70 000 hours L80
LEDs :
– The LEDs used in our products are classified in group 0: risk-free (presents no photobiological risk). SDMC = 3

Options

feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
transmission optics :
– clear sleeve with semi-opal diffuser (C0D1)
reflection optics :

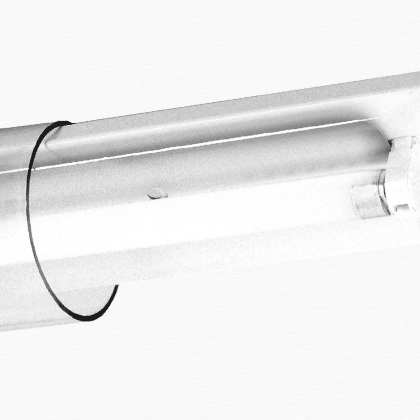

– wide symmetric reflector* (R1)

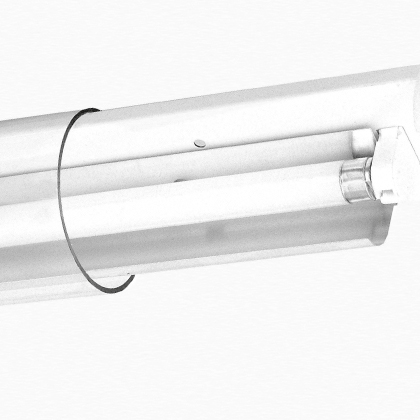

– wide asymmetrical reflector* (R2)
through wiring :
– crossing (TR)
pre-wiring :
– 1000 mm stripped (P-100)
tips :
– blue (BL)
– red (RG)
– yellow (JA)
– black (NR)
collar fixings :
– 304L stainless steel latch (F1)
– anti-vandal screw CHC stainless steel 304L (F2)
– latch with M6 inserts (F11)
cell :
– motion detection** (CH)
electrical class :
– class II (E2)
specific options and accessories :
– White variation LED (TW)
– middle feed*** (MIL)
– anti-scroll grille (G2)



* Available with diffuser option D1 only.
** The total length of the luminaire is increased by 110 mm.
*** Causes a reduction in IK (IK08).
