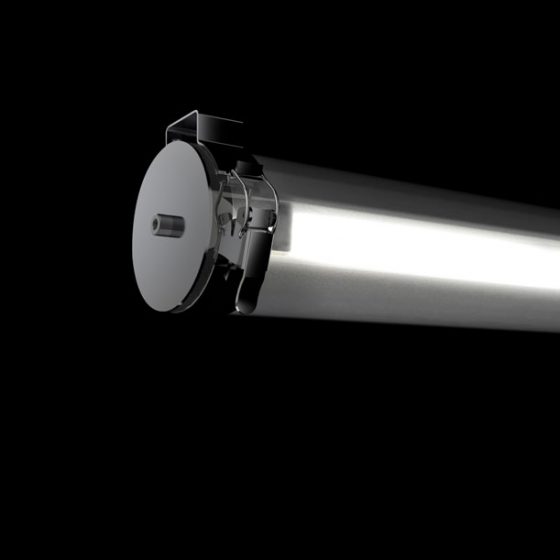

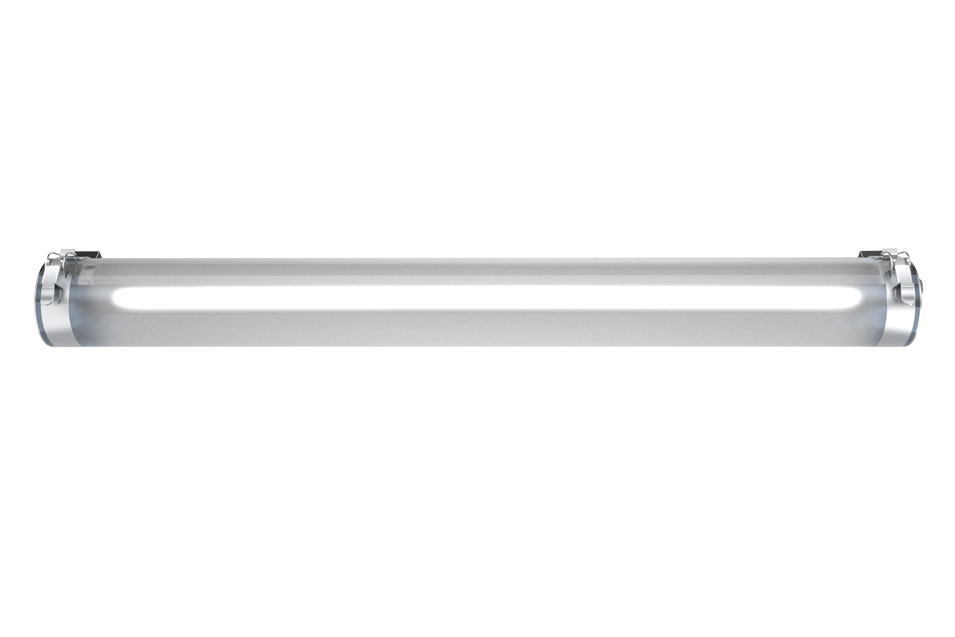

Tufo

LEDs

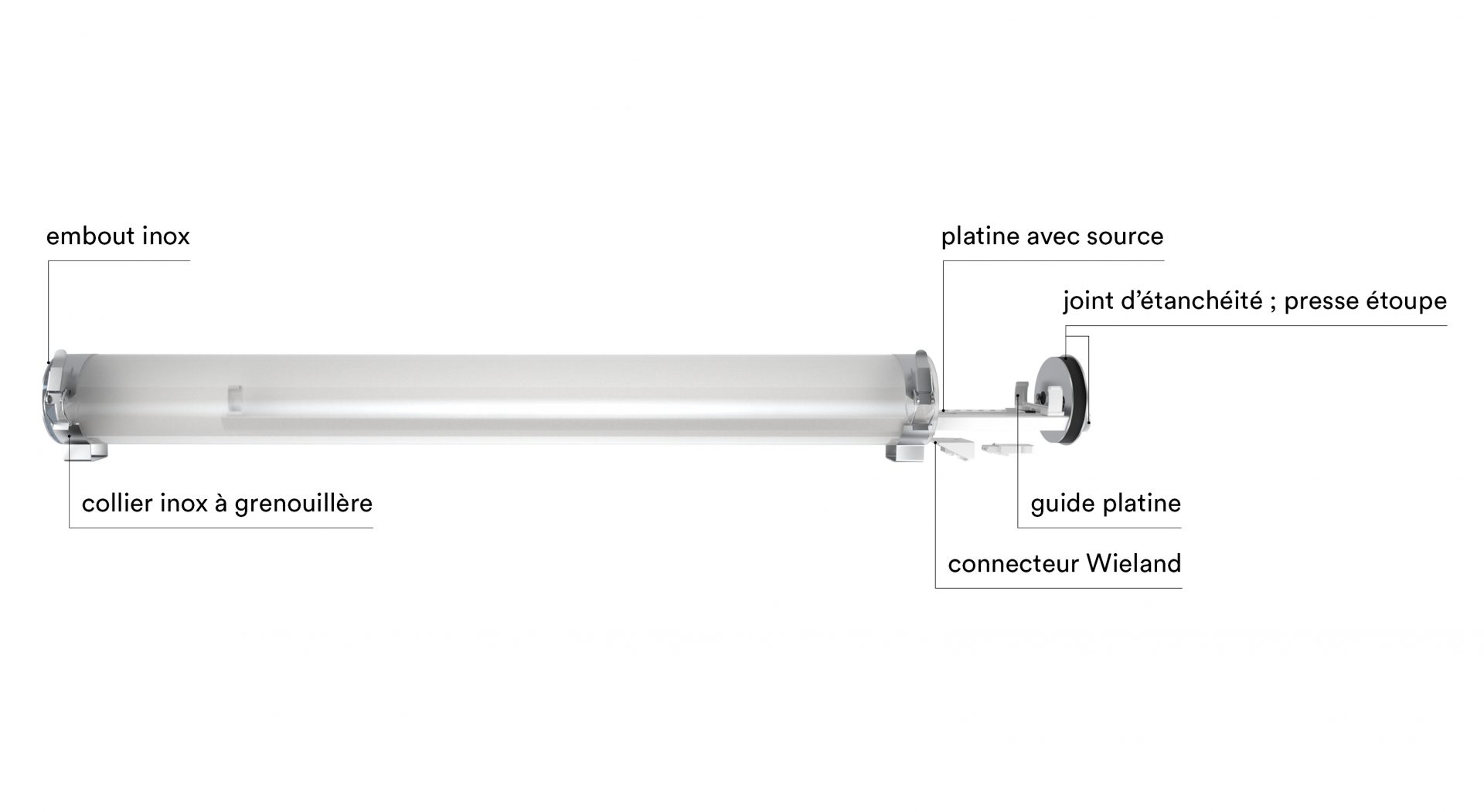

materials & finishes :

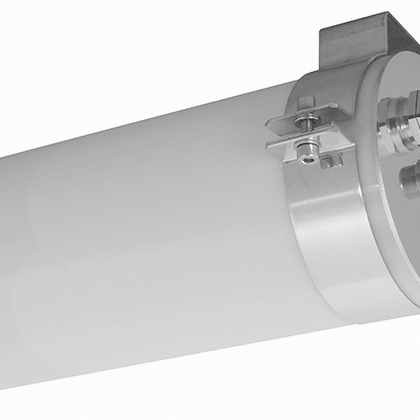

– 100 mm diameter anti-UV opal polycarbonate body with shiny stainless steel end caps

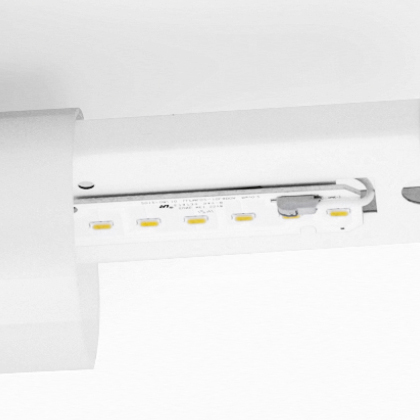

– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by Wieland connector through a cable gland (HO7 RNF cable diameter 6 to 12 mm)
fixation :
– by stainless steel toggle clamps on the polycarbonate body for variable center distance
color rendering index :
– CRI greater than 80
lifetime :
– 70000 h L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3

Options

feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
transmission optics :

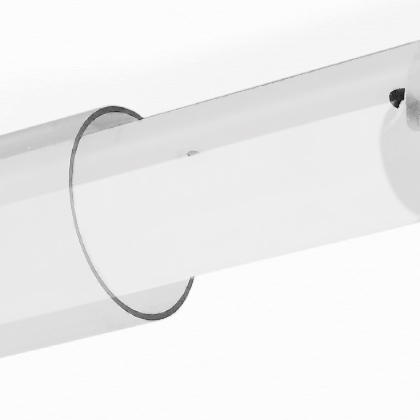

– clear sleeve with semi-opal diffuser (C0D1)
– clear sleeve with clear diffuser and prismatic optical film (C0D2)
reflection optics :

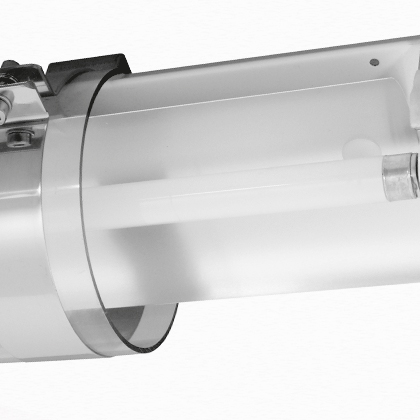

– wide symmetric reflector* (R1)

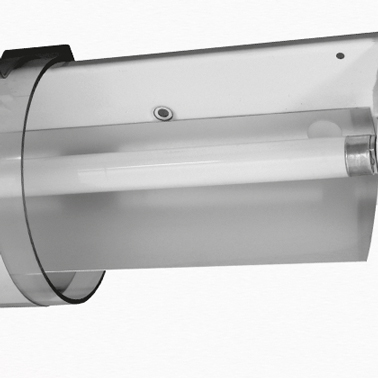

– wide asymmetrical reflector* (R2)
through wiring :
– crossing (TR)
pre-wiring :
– 1000 mm stripped (P-100)
– 200 mm with waterproof connectors (SP-20)
– end connector (CN)
fixing clamps :
– latch with M6 inserts (F11)

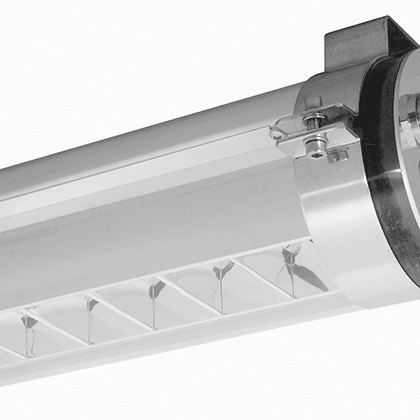

– anti-vandal screw CHC stainless steel 304L (F2)
– vandal-proof TORX 304L screw (F10)
– marine version with CHC 316L screw (M1)
cell :
– motion detection (CH)
electrical class :
– class II (E2)
specific options and accessories :
– White variation LED (TW)
– two cable glands on end piece (T2)
– middle feed*** (MIL)
* Available with option D1 only.
** The total length of the luminaire is increased by 110 mm.
*** Causes a reduction in IP (IP54) and IK (IK08).
