materials & finishes :
– luminaire developed for maintenance pits
– Electro-galvanized steel body thickness 15/10 mm. Painted in black RAL 9005.
– Tempered glass front thickness 6 mm.
– The cover is held closed by captive screws on the front of the cover.
– 3000 or 4000 K LED sources with a specific double asymmetrical lenses
– Electronic driver 220-240 V 50-60 Hz
connection :
– Connection via Wieland waterproof connector integrated on the body
Mounting :

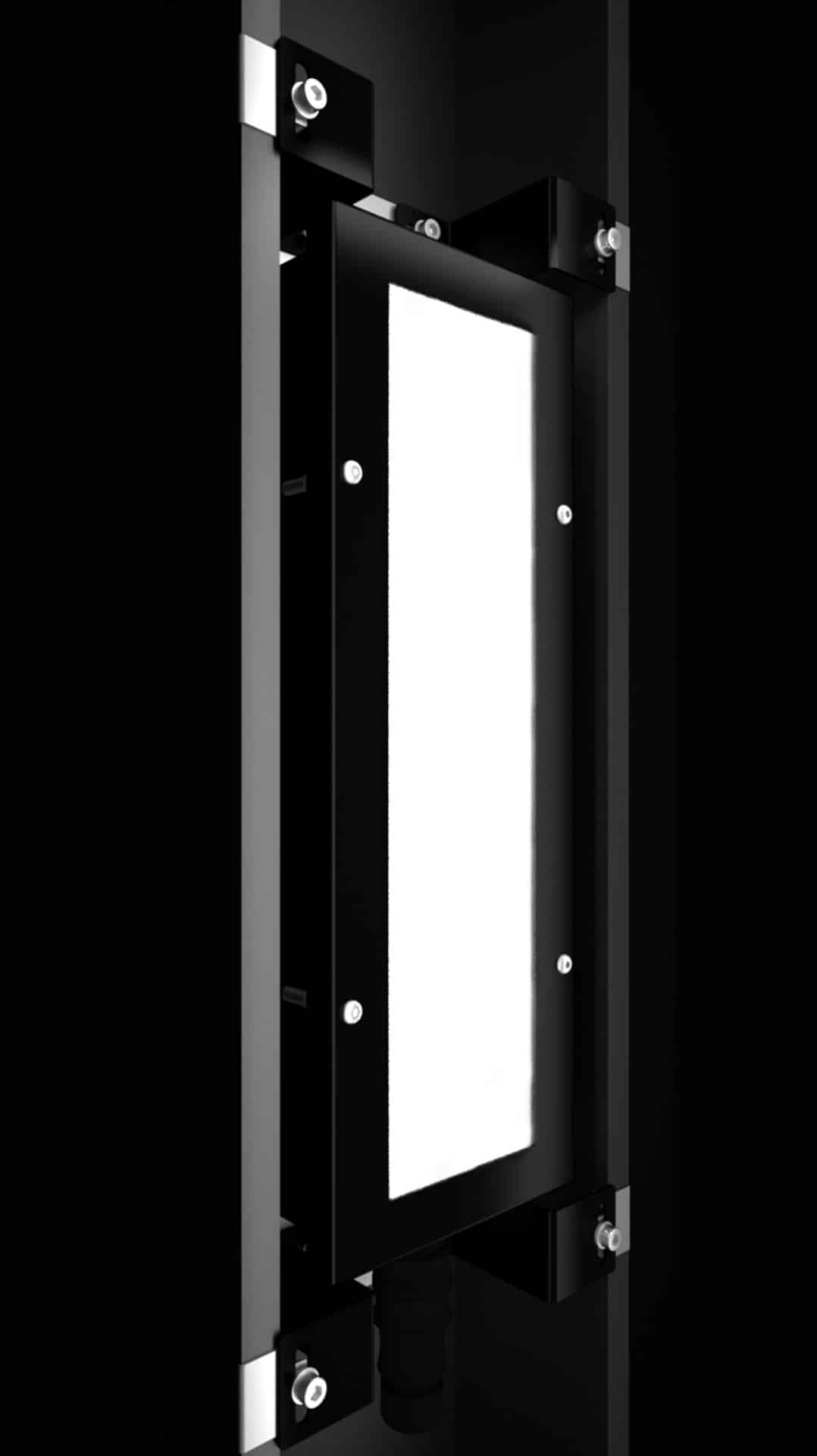

Flush mounting, inside bolalrd with mouting accessories :

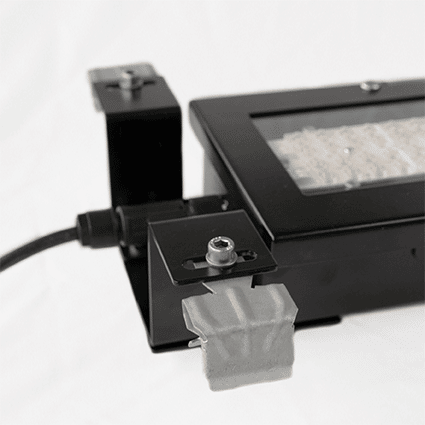

– by claws on post (GR)
– by compression (TP)
Both equiped with silent block anti-vibration system.
color rendering index :
– CRI > 80
lifetime :
– 80000 hours L80
