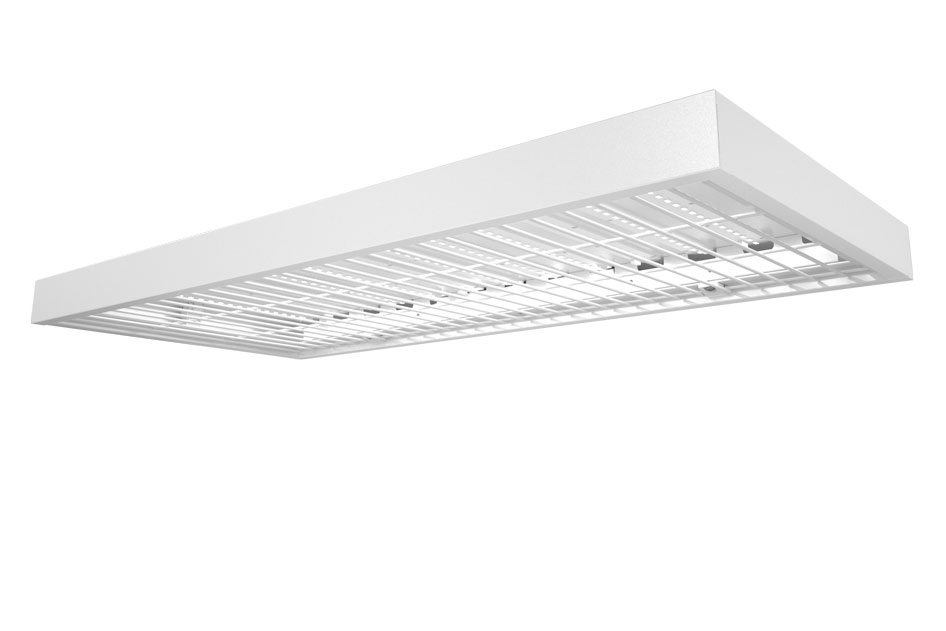

Pano

LEDs

materials & finishes :

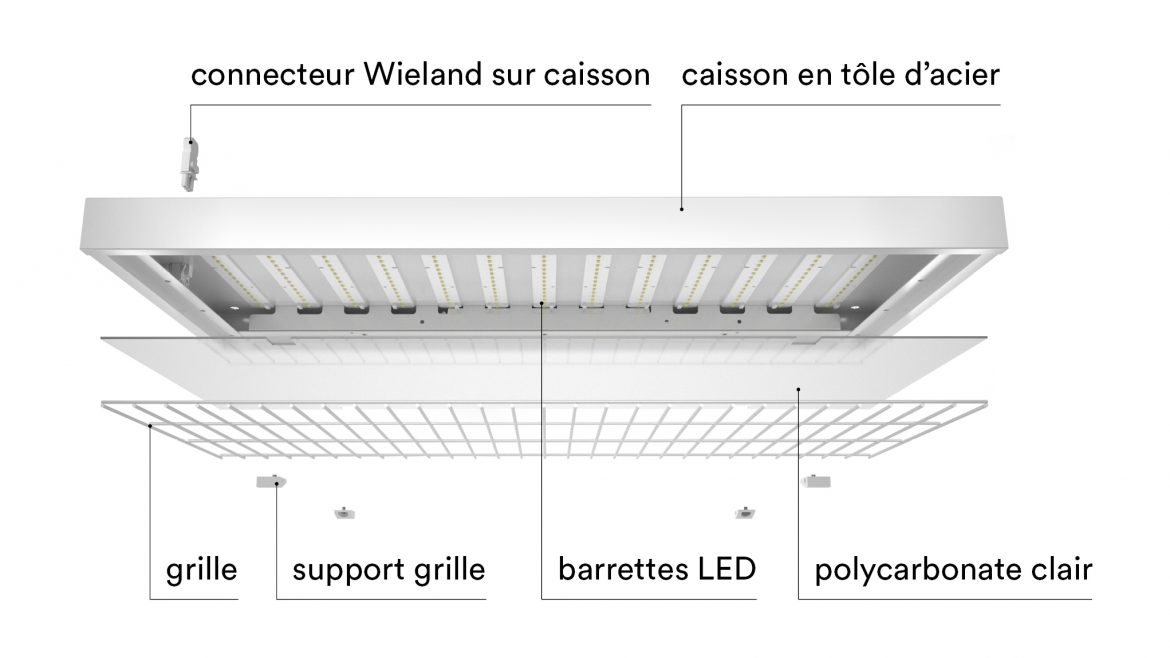

– sturdy white painted aluminum housing
– available in square or rectangular format
– clear polycarbonate basin, covered by a painted protective grid with rectangular mesh 100/25 mm (squash mesh)
– 3000 or 4000 K LED strips
connection :
–by Wieland connector on the top of the box
fixation :
– by lifting rings (4 M6 rings)
color rendering index :
– CRI greater than 80
lifetime :
– lifetime 70000 h L80
LED :
– the LEDs used in our products are classified in group 0: low risk (no photobiological risk under normal conditions of use).

Options

feed :
– DALI* (B4)
– BP with memory* (B6)
– programmable corridor function* (B7)
– CIO* (B8)
color temperature :
– 3000 K (H30)
wiring :
– crossing (TR)
optics :
– opal** (C1)
– diamond*** (C0D)
– clear (C0)
cell :
– presence and brightness detection**** (CPI)
dual ignition :
– dual ignition (DA)
electrical class :
– class II (E2)
specific options and accessories :
– paint color RAL***** (RAL)
– version IP54****** (IP54)
– asymmetrical lenses (ASY)
– optical lenses 40°/60°/90° (LENS40/60/90)
– double asymmetric lenses (DBASY)
– M6 inserts for suspension (F5)
– winch(TREUIL)

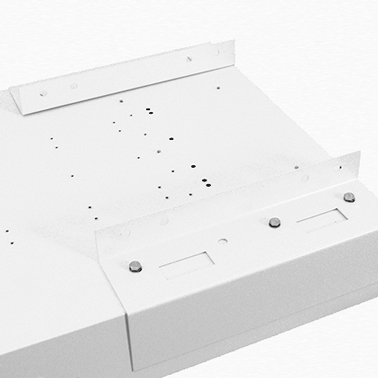

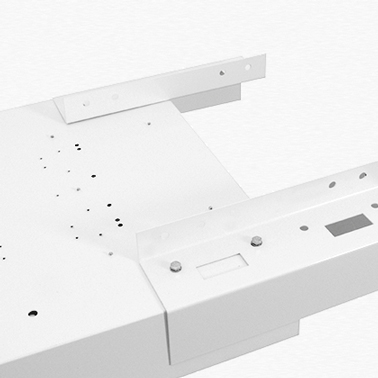

– alignment brackets (EQPAN)
– bracket kit for recessing (KITPAN)
* Added value of €35 for the PANL812 and PANR912 versions, added value of €70 for the PANR1312 version, added value of €105 for the PANR1812 and PANC1812 versions.
** Added value of €55 for the PANR1812 and PANC1812 versions.
*** Added value of €66 for the PANR1812 and PANC1812 versions.
**** Up to 16 meters.
***** Standard colours: Black RAL9005, Aluminum gray RAL9006.
****** Not available in grid version.
