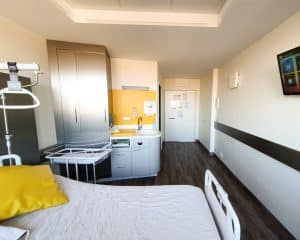

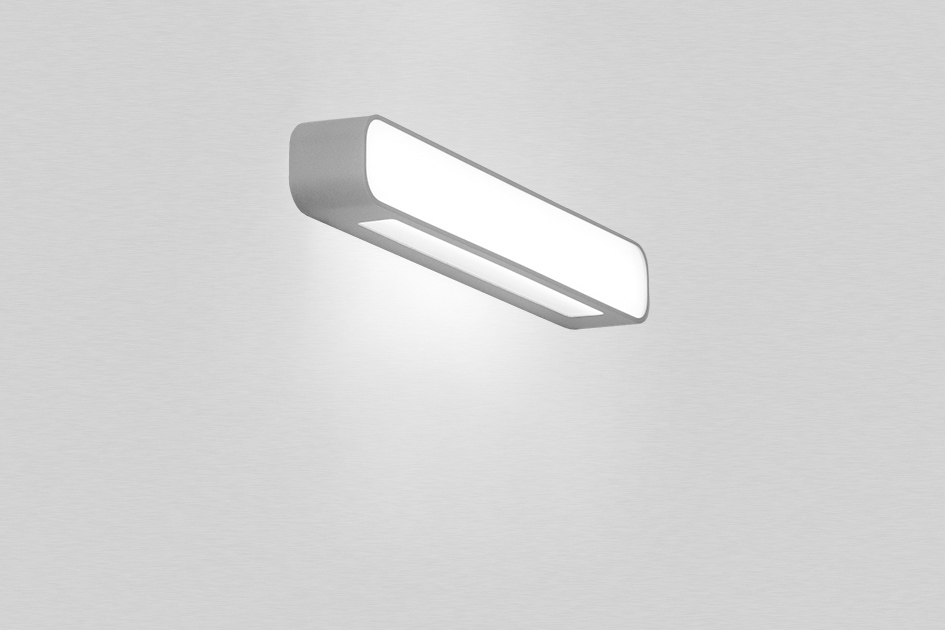

APSO, University Hospital of Poitiers (86), maternity service. Wall lighting for bedrooms and bathrooms.

Apso

LEDs

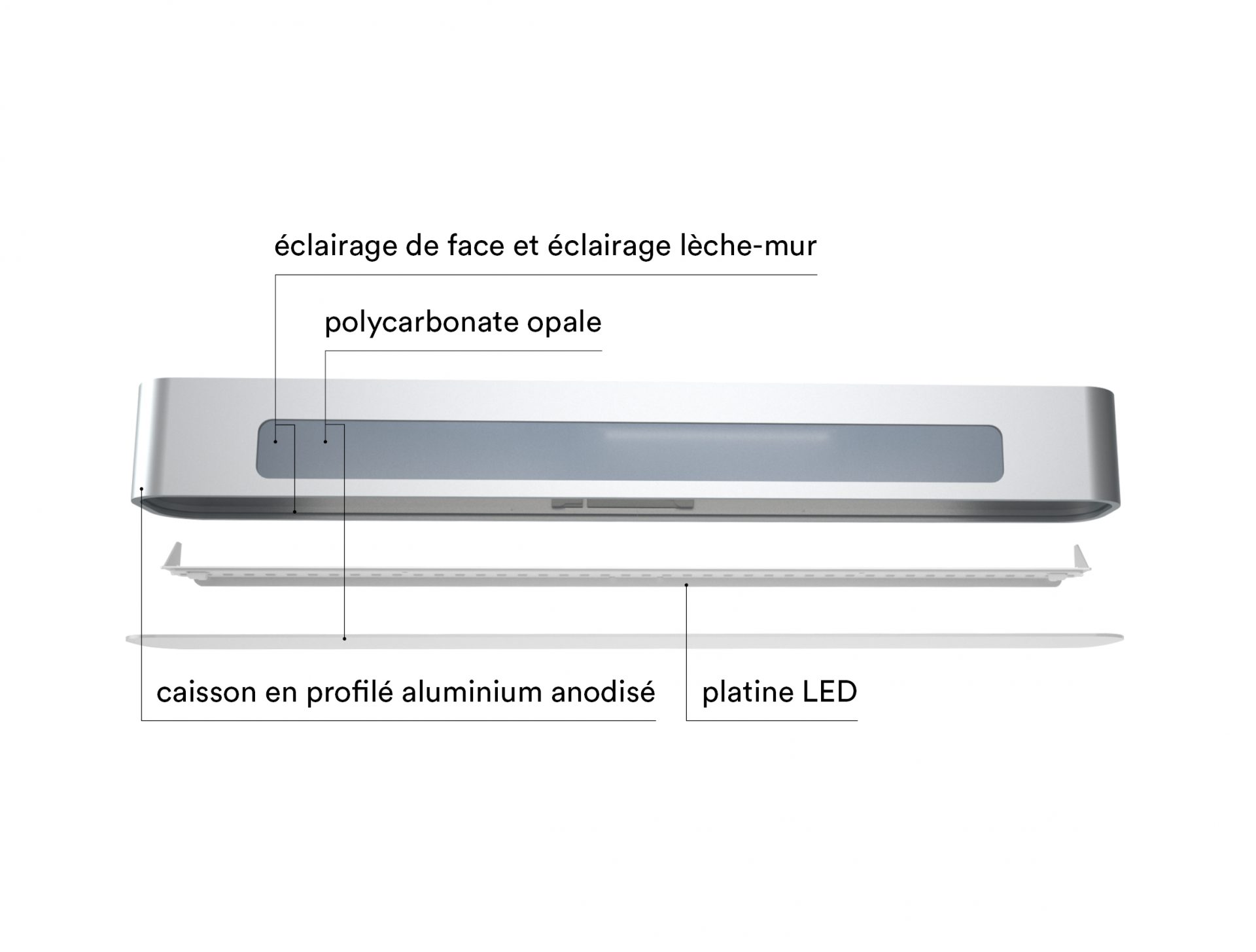

materials & finishes :

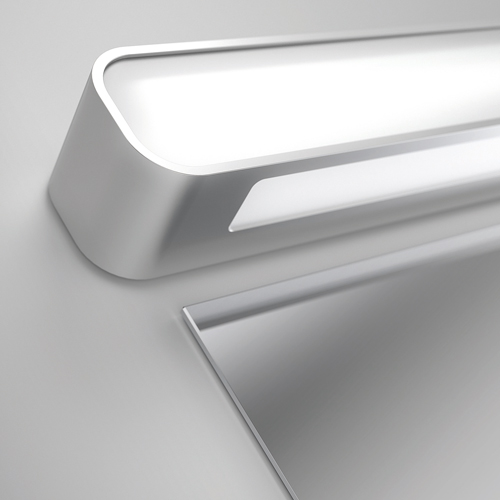

– Bathroom strip composed of a body in curved anodized aluminum profile
– Opal polycarbonate washbasin in the front and in the lower part
– fixed on a white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– at two points by M4 screws at the rear of the device by buttonholes
CRI :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3

Option

feed :
– DALI* (B4)
– BP with memory* (B6)
– programmable corridor function* (B7)
– DSI* (B8)
color temperature :
– 3000 K (H30)

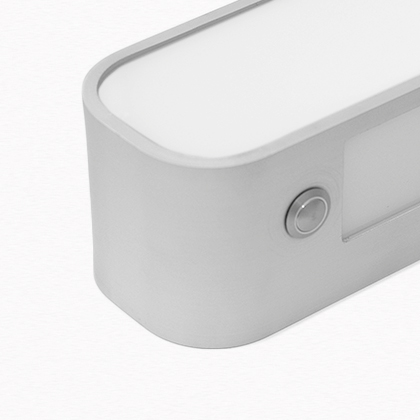

switch :
– switch (S0)
– tirette (T0)
electrical class :
– class I
specific options :

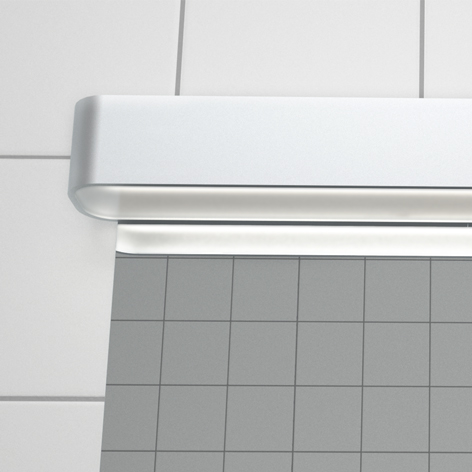

– surface mounted (APP)
– indirect lighting** (IND)
– RAL color paint (RAL)

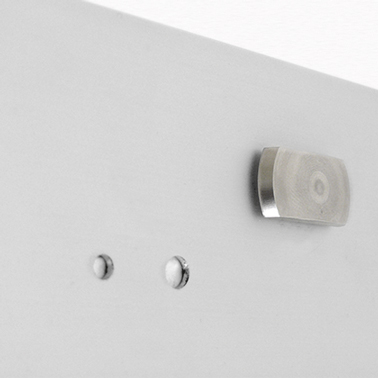

– razor socket*** (S1)
– personalized plaque on the front (PERSO)
* Imposes a functional earth in class II.
** Lighting in the lower part only, steel plate on the front.
*** Length increased by 150 mm.
