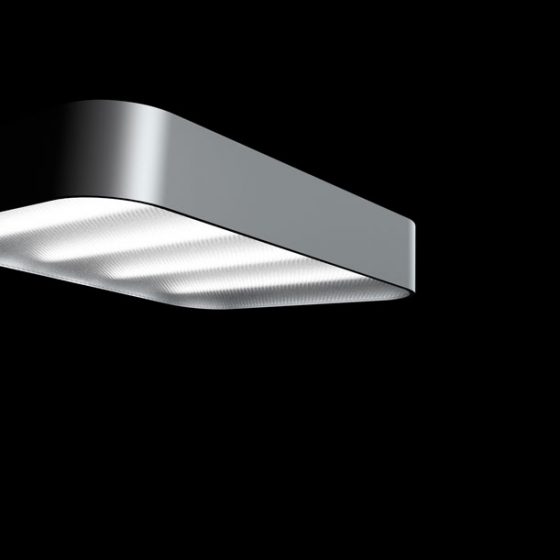

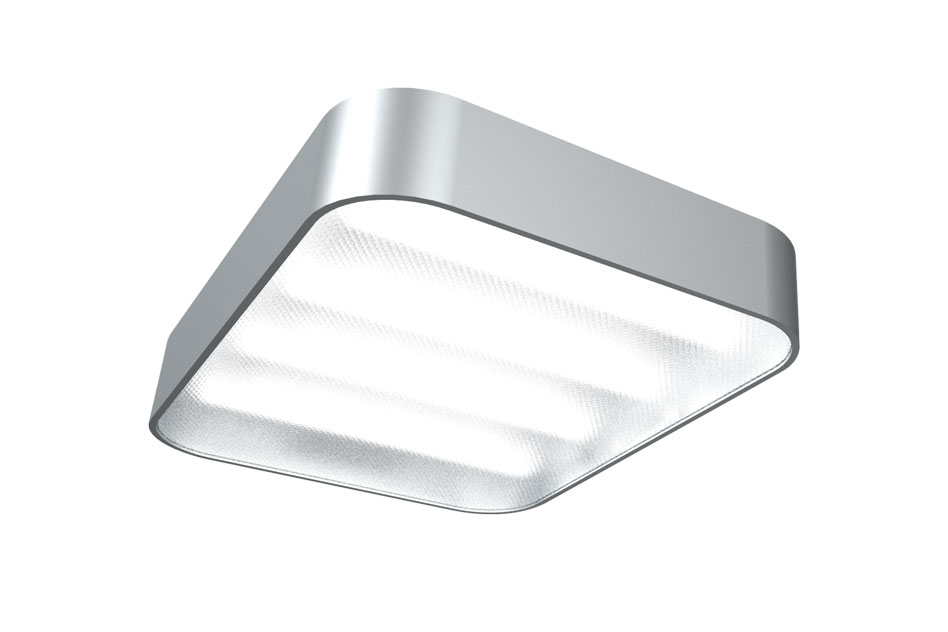

Apio

materials & finishes :

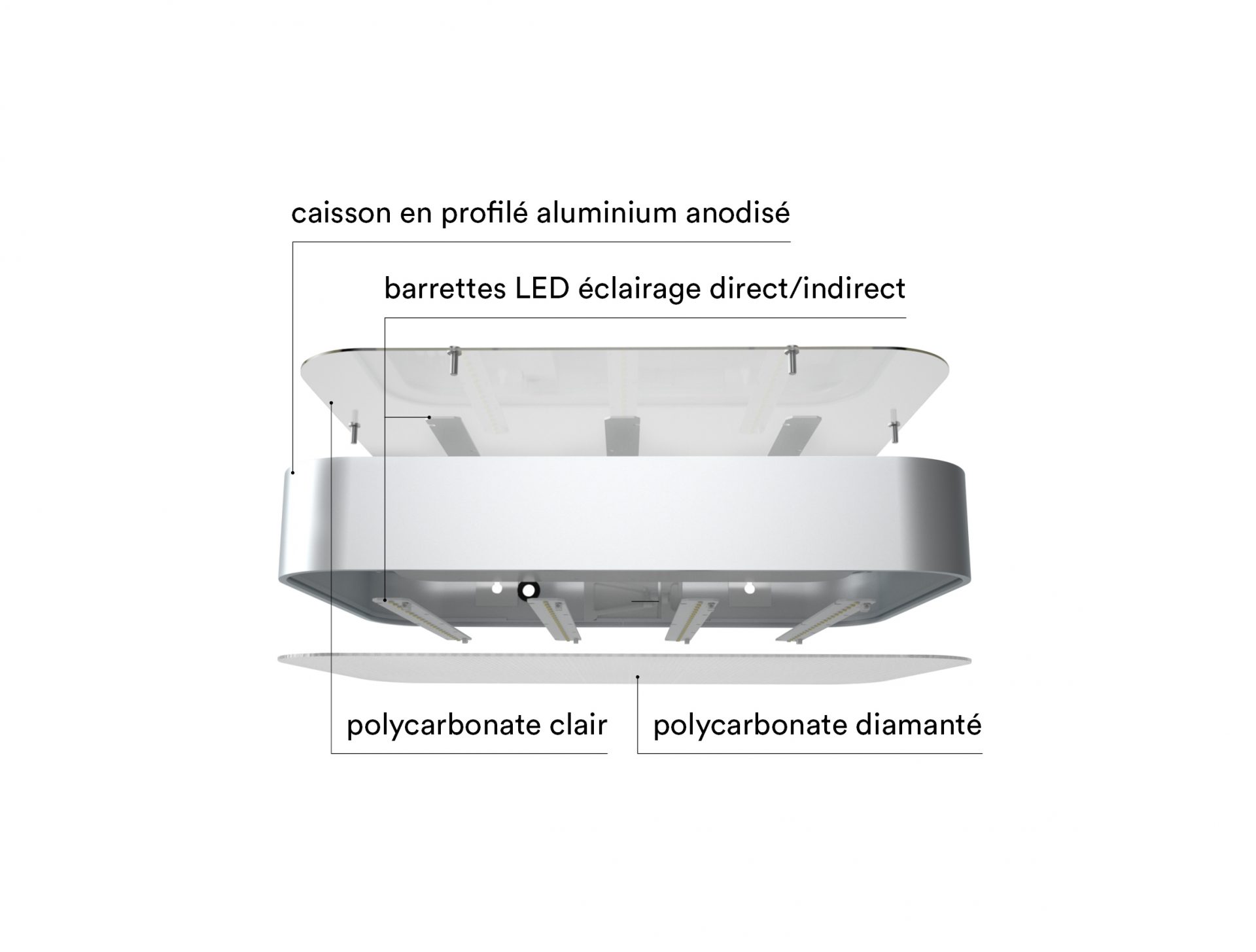

– body in anodized aluminum profile, clear polycarbonate plate on the top and diamond-cut polycarbonate on the bottom
– direct/indirect lighting
– aluminum plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– by two M4 screws at the rear of the device
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
optics :
– opal (C1)
éclairage :
– direct* (DI)
– indirect* (IN)

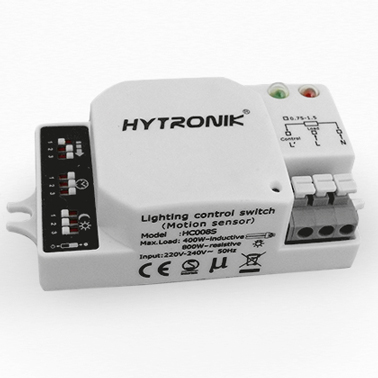

cell :
– presence detection (CP)
– presence and brightness detection** (CPI)
– presence detection and/or programmable brightness** (CPD)
electrical class :
– class II (E2)
specific options :
– dual ignition (DA)
– RAL color paint (RAL)
– White variation LED (TW)
* The direct or indirect options have different powers, contact us.
** Dimming required.
