Addi

LEDs

materials & finishes :

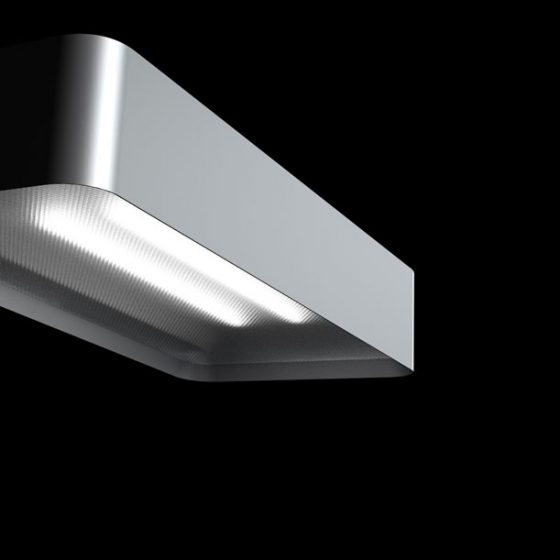

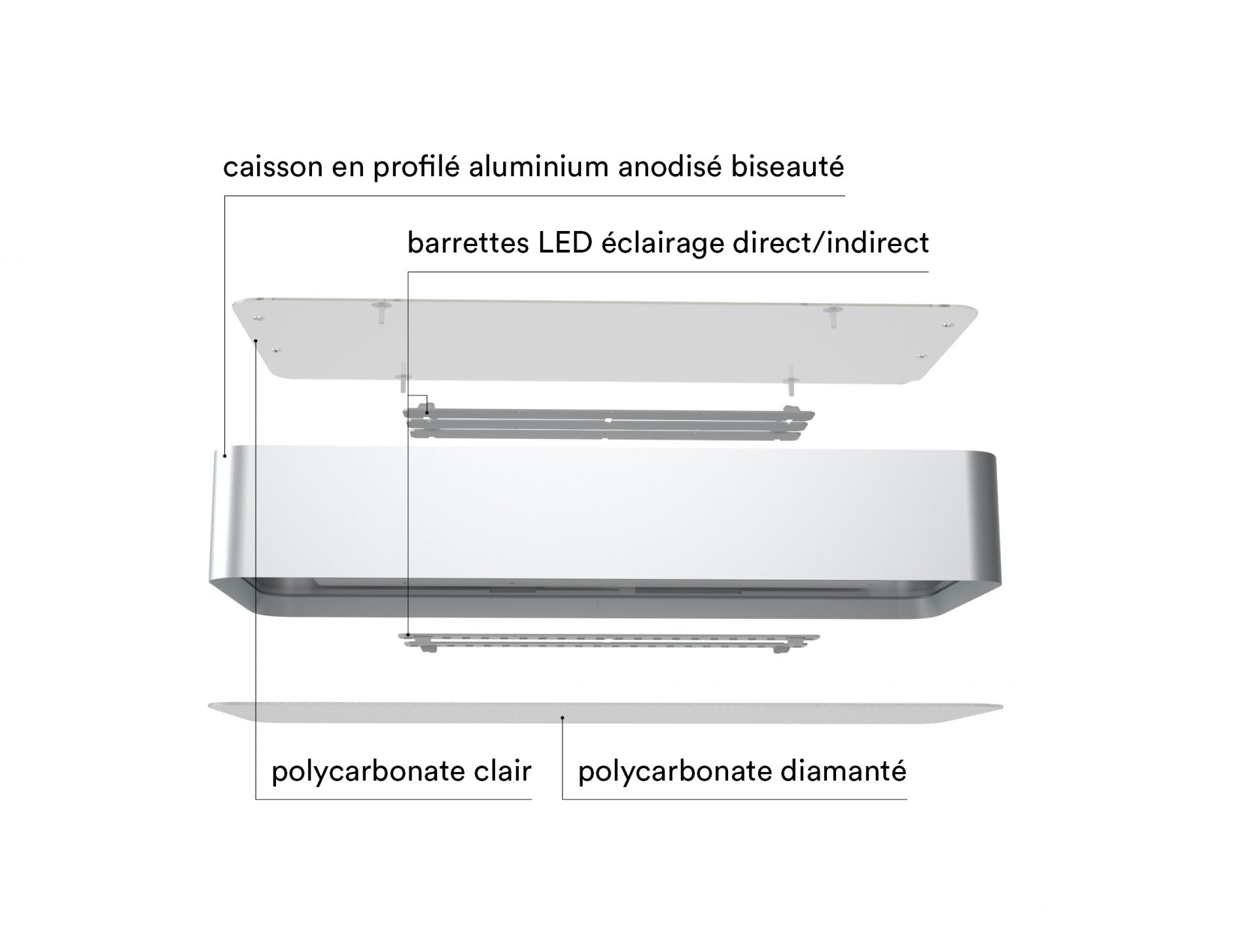

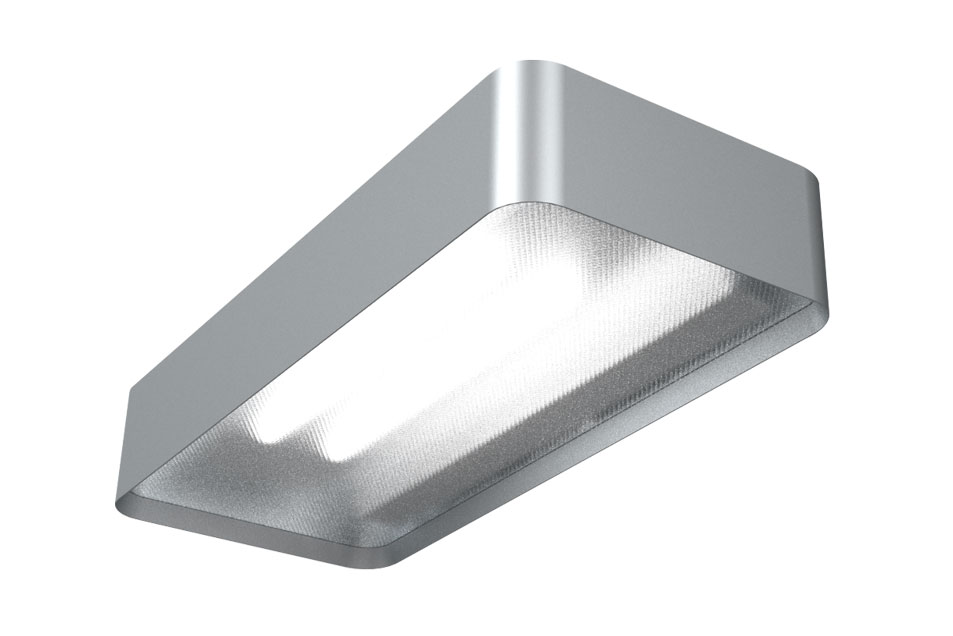

– surface mounted lighting, rectangular body, anodized aluminum profile.

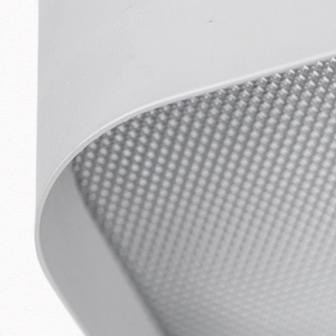

– diamond polycarbonate plate below, recessed 15 mm and clear polycarbonate above
– direct/indirect lighting
– aluminum plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– by two M4 screws at the rear of the device
In the same style, see the SLADI available in a wall version
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3

Option

feed :
– electronics (B1)
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
optics :
– opal (C1)
lighting* :
– direct* (DI)
– indirect* (IN)
cell :
– presence detection (CP)
– presence and brightness detection** (CPI)
– presence detection and/or programmable brightness** (CPD)
electrical class :
– class II (E2)
specific options :
– dual ignition (DA)
– RAL color paint (RAL)
– White variation LED (TW)
* The direct or indirect options have different powers, contact us.
** Dimming required.
Ask for a quote
Surface mounted
