Apti

materials & finishes :

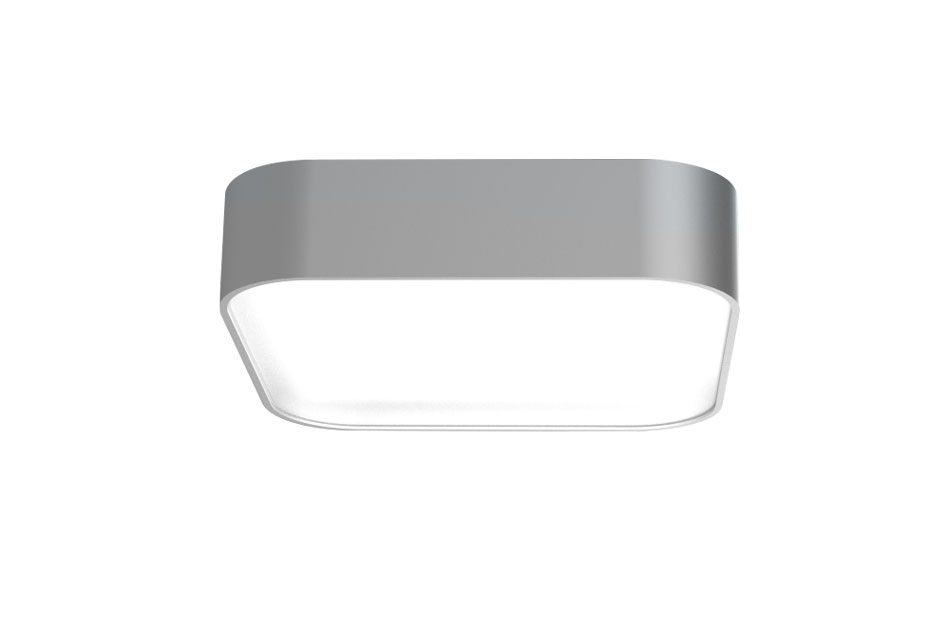

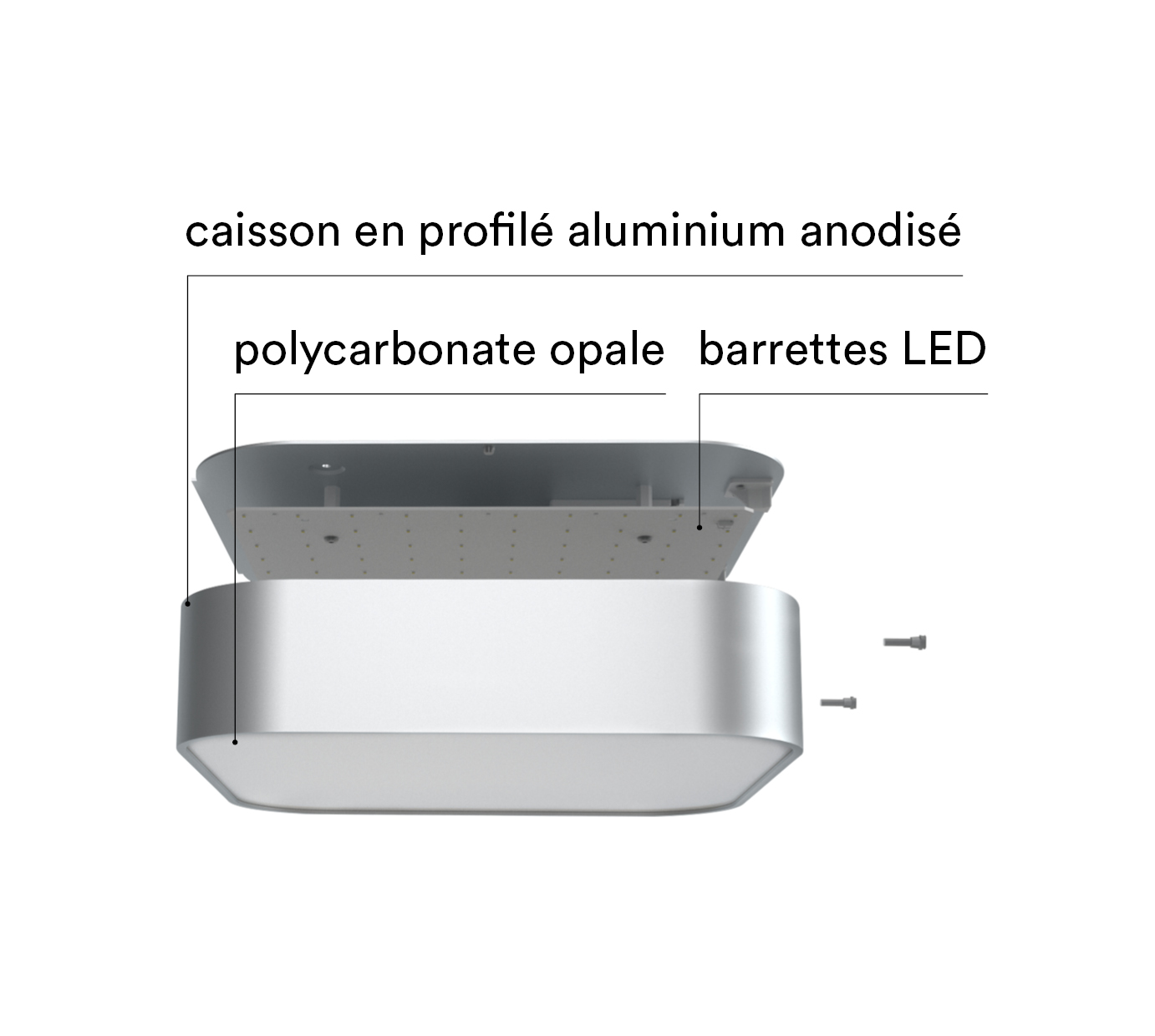

– square wall light made up of a body in clear anodized curved aluminum profile and an opal polycarbonate basin
– assembly fixed on a white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– wall-mounted or ceiling-mounted: at three points using M4 screws in the bottom of the plate

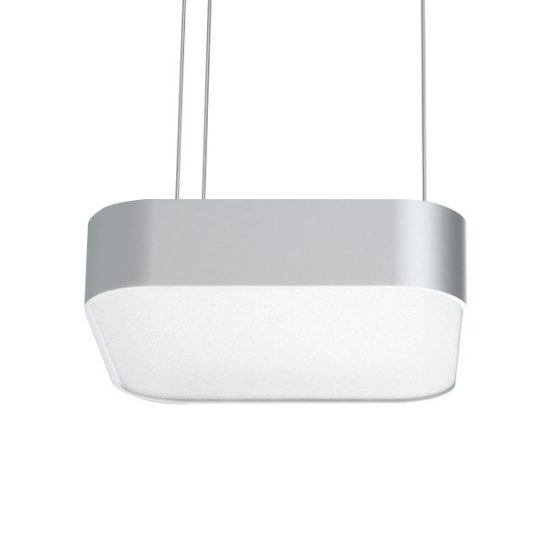

– in suspension: in three points by three ropes (not supplied)
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 1: low risk (no photobiological risk under normal conditions of use).
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
optics :
– diamond (C0D)
fixation :
– M6 inserts for suspension (F5)
cell :
– motion detection (CH1)
electrical class :
– classe II (E2)
specific options and accessories :
– RAL color paint (RAL)
– White variation LED (TW)
– suspension wire (length 2m)* (CA200N02)
– suspension cable with aesthetic end piece (length 2m)* (CA200N03)
* Three lines required per device.
