Appa

materials & finishes :

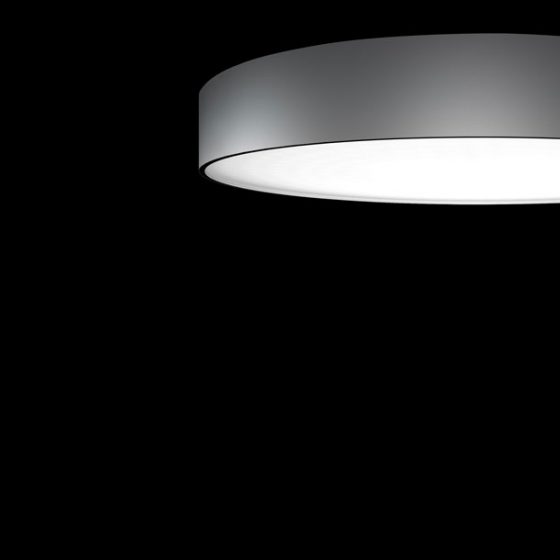

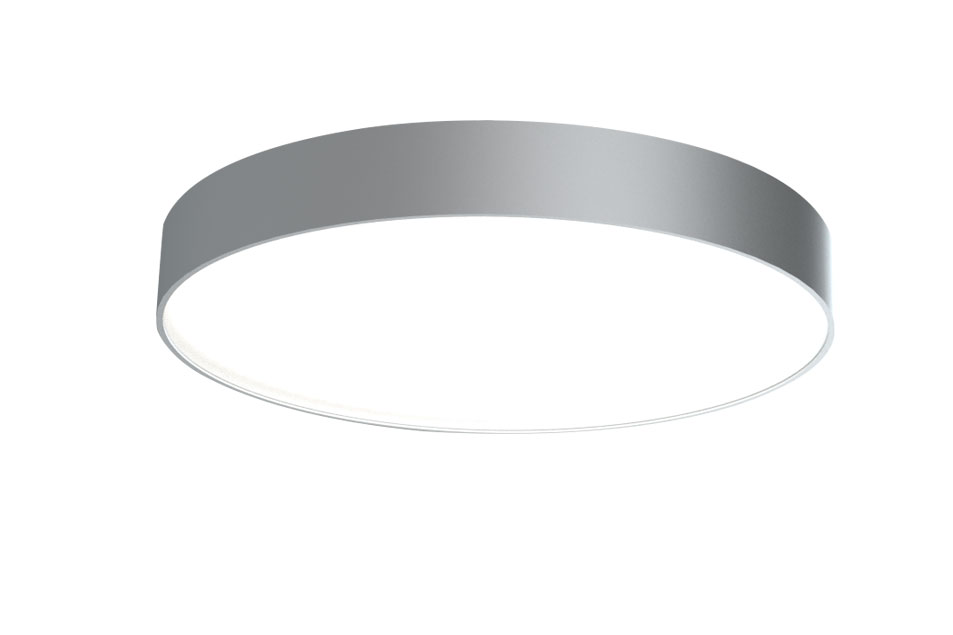

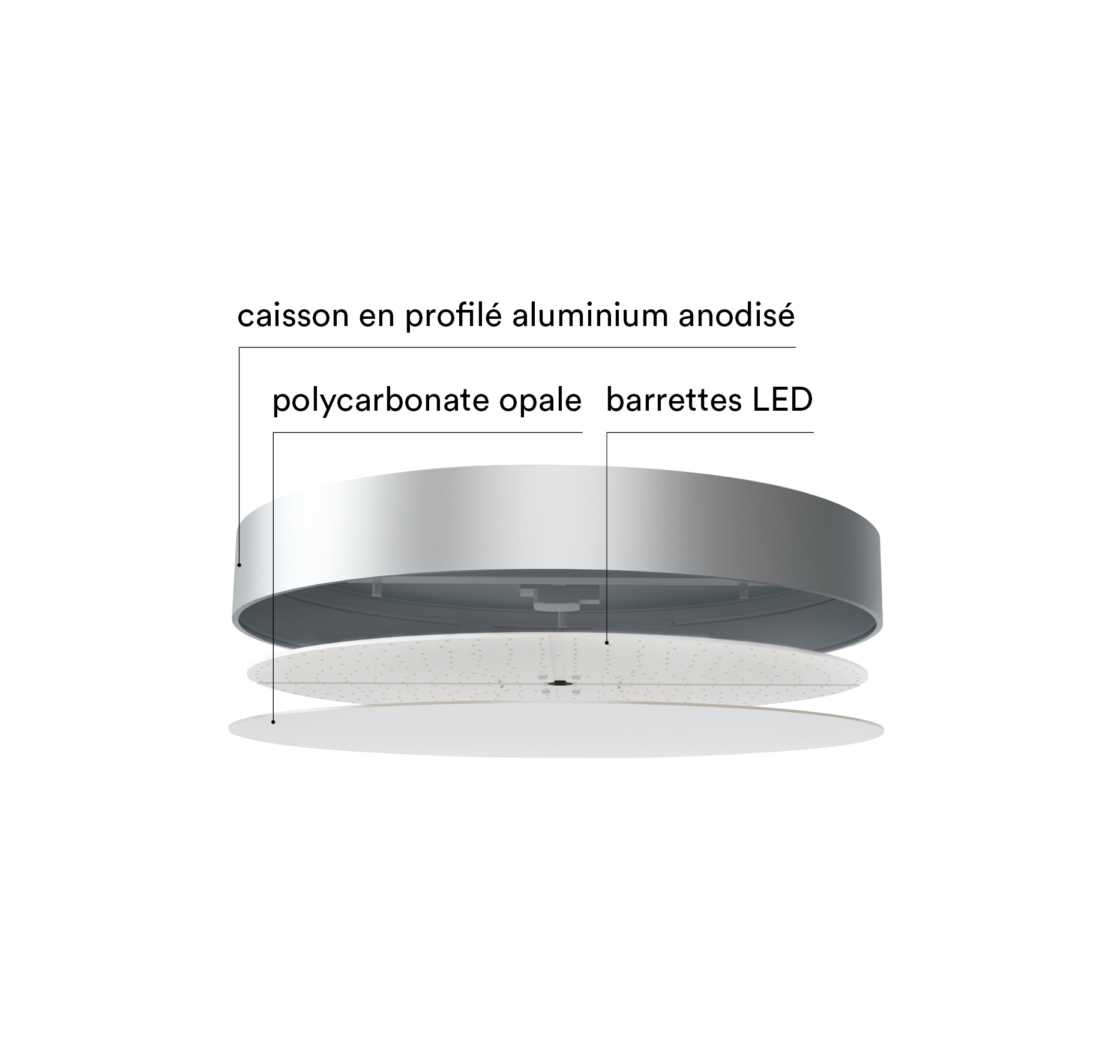

– round wall lamp composed of a body in clear anodized rolled aluminum profile and an opal polycarbonate basin
– assembly fixed on a white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block with cable clamp
fixation :
– wall-mounted or ceiling-mounted: at three points using M4 screws in the bottom of the plate

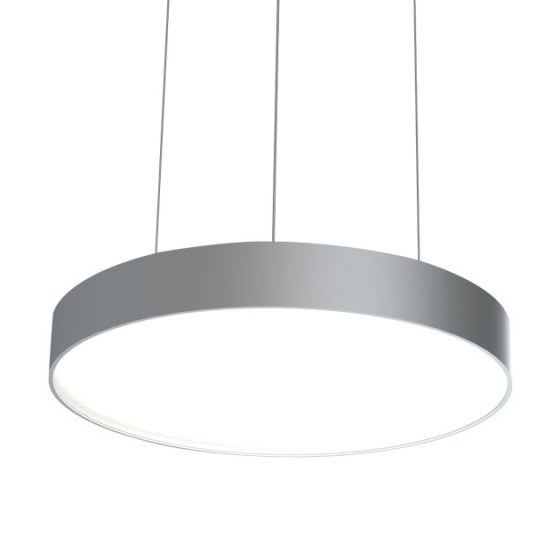

– in suspension: fixing by three ropes (not supplied)
color rendering index :
– CRI greater than 80
lifetime :
– 50000 h L80
LEDs :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
optics :
– diamond (C0D)
fixation :
– M6 inserts for suspension (F5)
cell :
– motion detection (CH1)
electrical class :
– classe II (E2)
specific options and accessories :
– RAL color paint (RAL)
– White variation LED (TW)
– suspension wire (length 2m) (CA200N02)*
– suspension cable with aesthetic end (length 2m) (CA200N03)*
* Three lines required per device.
