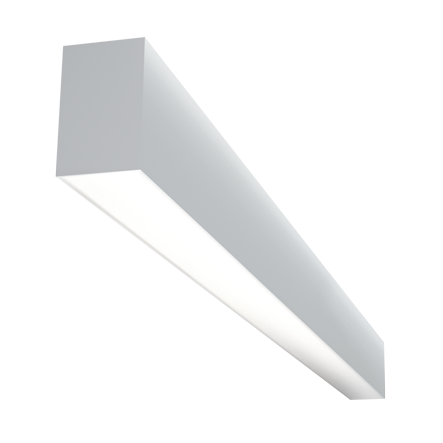

Suto

materials & finishes :
– body in 50 × 80 mm aluminum profile and end caps in aluminum assembly painted in white RAL 9003
– Clear polycarbonate bowl with opal diffuser and diamond film
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by terminal block through a cable gland
fixation :
– rope suspension in M6 threaded inserts
– ceiling light in the bottom of the body by screws (4 mm)
– flush-mounted
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
source :
– the LEDs used in our products are classified in group 0 : risk-free (presents no photobiological risk). SDMC = 3
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)
transmission optics :
– Clear polycarbonate basin with diamond film (C0D)*
– Clear basin + opal film (C1)*
pre-wiring :
– 1000 mm stripped (P-100)
cell :
presence detection (CP) :
– presence and brightness detection (CPI)**
– presence detection and/or programmable brightness (CPD)
electrical class :
– class II (E2)
fixation :
– ceiling light (PLAF)
specific options and accessories :
– Online(MLD)
– Suspension wire (length 2m) (CA200N02)
– Suspension cable with aesthetic end piece (length 2m) (CA200N03)
* UGR<19 not guaranteed for these versions
** Dimming required.
