Suri

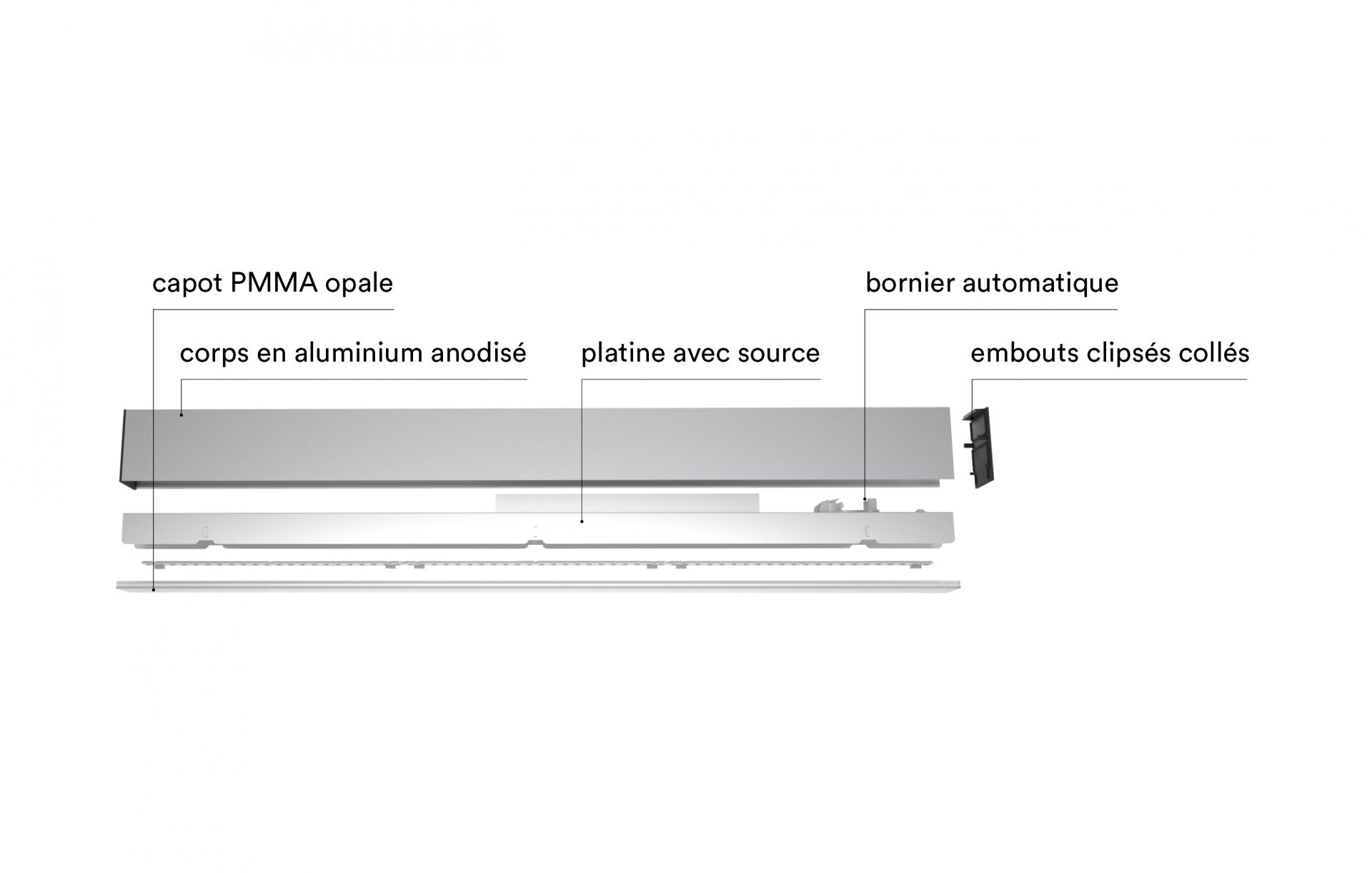

materials & finishes :
– body in 45 × 80 mm anodized aluminum profile, opal PMMA polycarbonate bowl
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block
fixation :
– ceiling light in the bottom of the body by screws (4 mm)
– rope suspension in M6 threaded inserts
– flush-mounted with adjustable flush-mounting kit
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0: risk-free (presents no photobiological risk). SDMC = 3
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :
– 3000 K (H30)

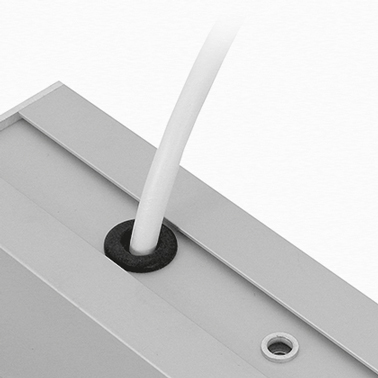

pre-wiring :
– 1000 mm stripped (P-100)
tips :
– aluminum gray painted* (A1)
– painted white* (A0)
cell :
– presence detection (CP)
– presence and brightness detection** (CPI)
– presence detection and/or programmable brightness** (CPD)
electrical class :
– class II (E2)
specific options and accessories :
– asymmetrical lenses (ASY)
– “batwing” lenses (BATW)
– double asymmetric lenses (DBASY)
– optical lenses 40°/60°/90° (LENS40/60/90)
– peinture teinte RAL (corps) (RAL)
– led variation de blancs (TW)
– suspension wire (length 2 m) (CA200N02)
– suspension cable with aesthetic end piece (length 2m) (CA200N03)
– kit d’encastrement réglable*** (KITSUR)
* This added value includes the tint of the tips only.
** Dimming required.
*** For lengths 590/890/1190/149 mm.
