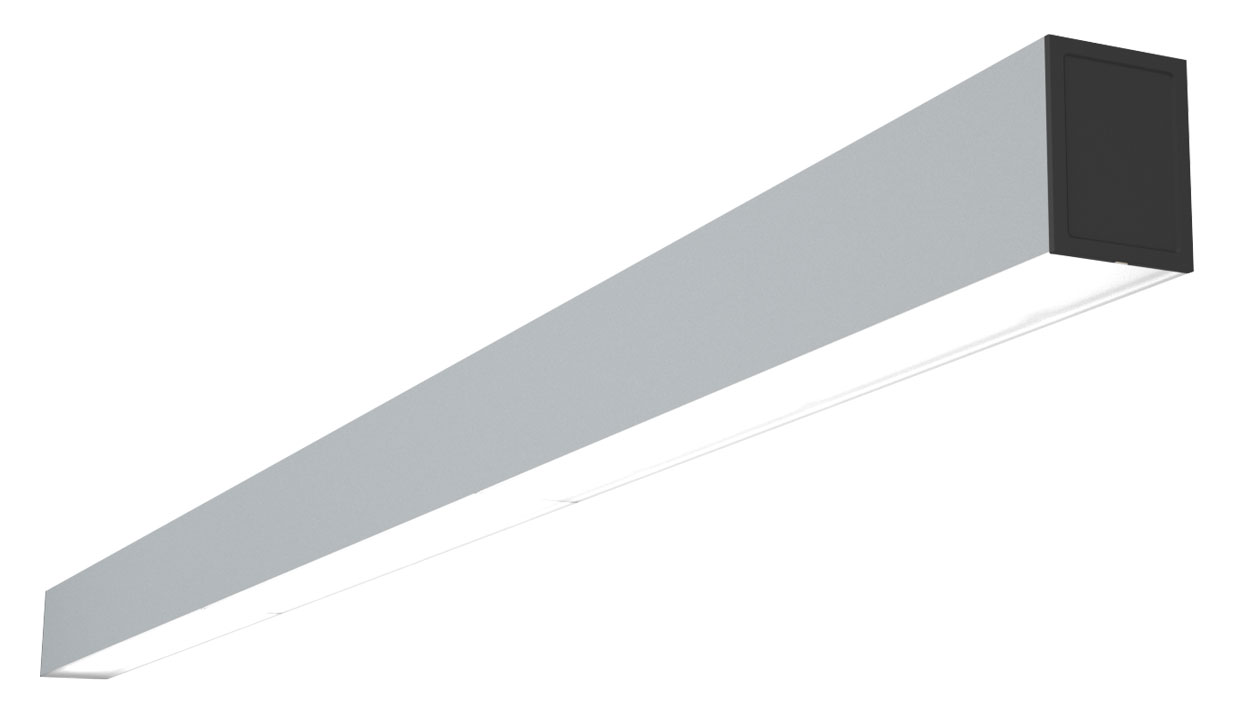

Suna continuous-row

LEDs

materials & finishes :
– body in 60 × 80 mm anodized aluminum profile, PMMA opal bowl with anthracite end caps
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
connection :
– by automatic terminal block
fixation :
– products assembled and held in line by jointing
– ceiling light in the bottom of the body by screws (4 mm)
– rope suspension in M6 threaded inserts
– flush-mounted with adjustable flush-mounting kit
color rendering index :
– CRI greater than 80
lifetime :
– 70000 hours L80
LEDs :
– the LEDs used in our products are classified in group 0: risk-free (presents no photobiological risk). SDMC = 3

Options

Position :
– departure (SUND)
– intermediate(SUNI)
– end(SUNF)
feed :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
reflection optics :
– wide symmetric reflector (R1)
– wide asymmetrical reflector (R2)
pre-wiring :
– 1000 mm stripped (P-100)
tips :
– aluminum gray painted* (A1)
– painted white* (A0)
cell :
– presence detection (CP)
– presence and brightness detection (CPI)**
– presence detection and/or programmable brightness** (CPD)
electrical class :
– class II (E2)
specific options and accessories :
– RAL color paint (corps)
– White variation LED (TW)
– suspension wire (length 2 m) (CA200N02)
– suspension cable with aesthetic end piece (length 2m) (CA200N03)
– adjustable flush-mounting kit*** (KITSUN)
*This added value includes the tint of the tips only.
**Dimming required.
***For length 590/890/1190/1490 mm.
