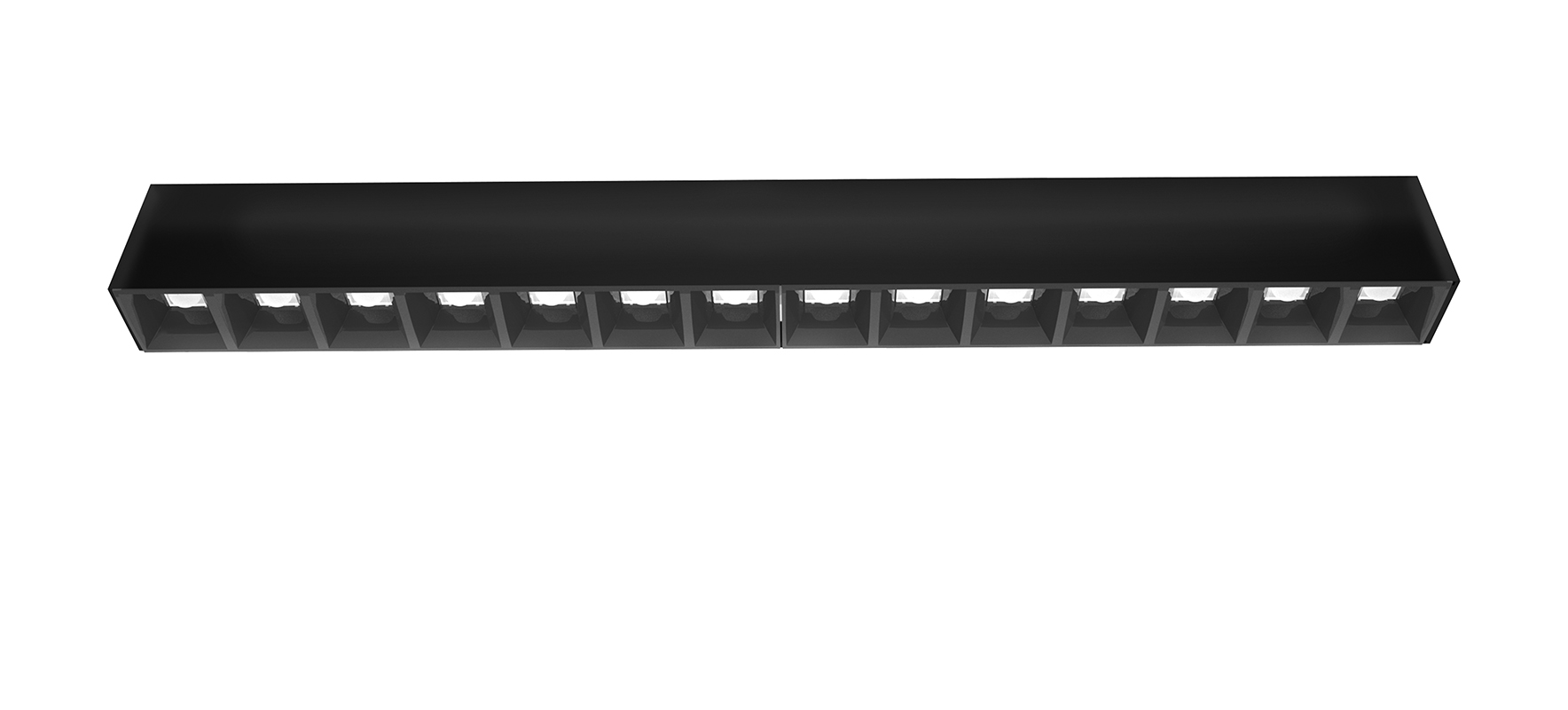

SUDA-LED-entier
SUDA-eclate

Suda

LEDs

materials & finishes :
– body in 40 × 80 mm aluminum profile, end caps painted in Black RAL9005.
– white painted sheet steel plate incorporating 3000 or 4000 K LED strips
optics :
– lens(es) and optical grids
connection :
– by automatic terminal block
fixation :
– ceiling light : fixed inside the body with screws (4 mm)
– rope suspension in M6 threaded inserts
color rendering index :
– CRI greater than 80
UGR :
– UGR<16
– UGR<19
lifetime :
– 70000h L80
LEDs :
– The LEDs used in our products are classified in group 1: low risk (no photobiological risk under normal conditions of use). SDMC = 3

Option

alimentation :
– DALI (B4)
– BP with memory (B6)
– programmable corridor function (B7)
– CIO (B8)
color temperature :

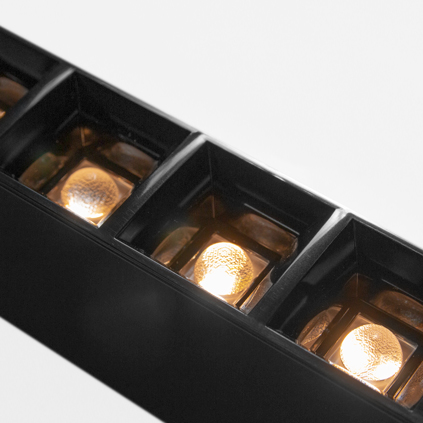

– 3000 K (H30)
pre-wiring :
– 1000 mm stripped (P-100)
body and end caps color :
– white RAL9003** (RAL9003)
– aluminum grey RAL9006** (RAL9006)
cell*** :
– presence detection (CP)
– presence and brightness detection**** (CPI)
– presence detection and/or programmable brightness**** (CPD)
fixation :
– pendant (SUSP)
electrical class :
– class II (E2)
Option and specifics accessories :

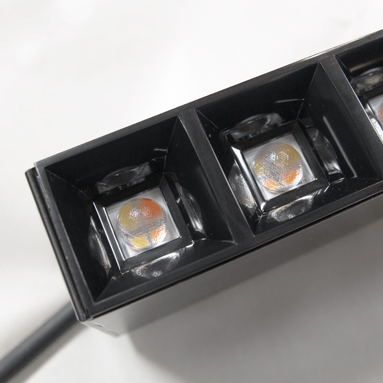

– White variation LED (TW)
– put online (MLD)

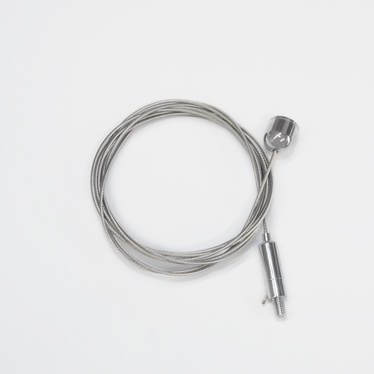

– suspension wire (length 2 m) (CA200N02)

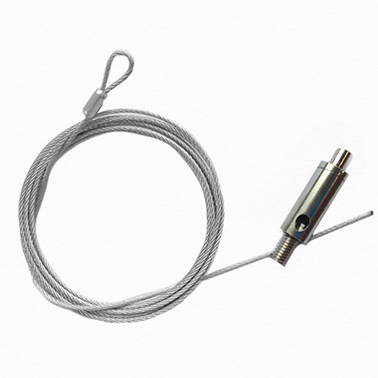

– suspension cable with aesthetic end piece (length 2m) (CA200N03)
– adjustable flush-mounting kit***** (KITSUD)
* Basic 80°.
** By default, the grid is black. It is available in black or white.
*** The cell option involves an increase in the total length of the luminaire.
**** Dimming required.
***** For lenghts 565/845/1125/1405 mm.
